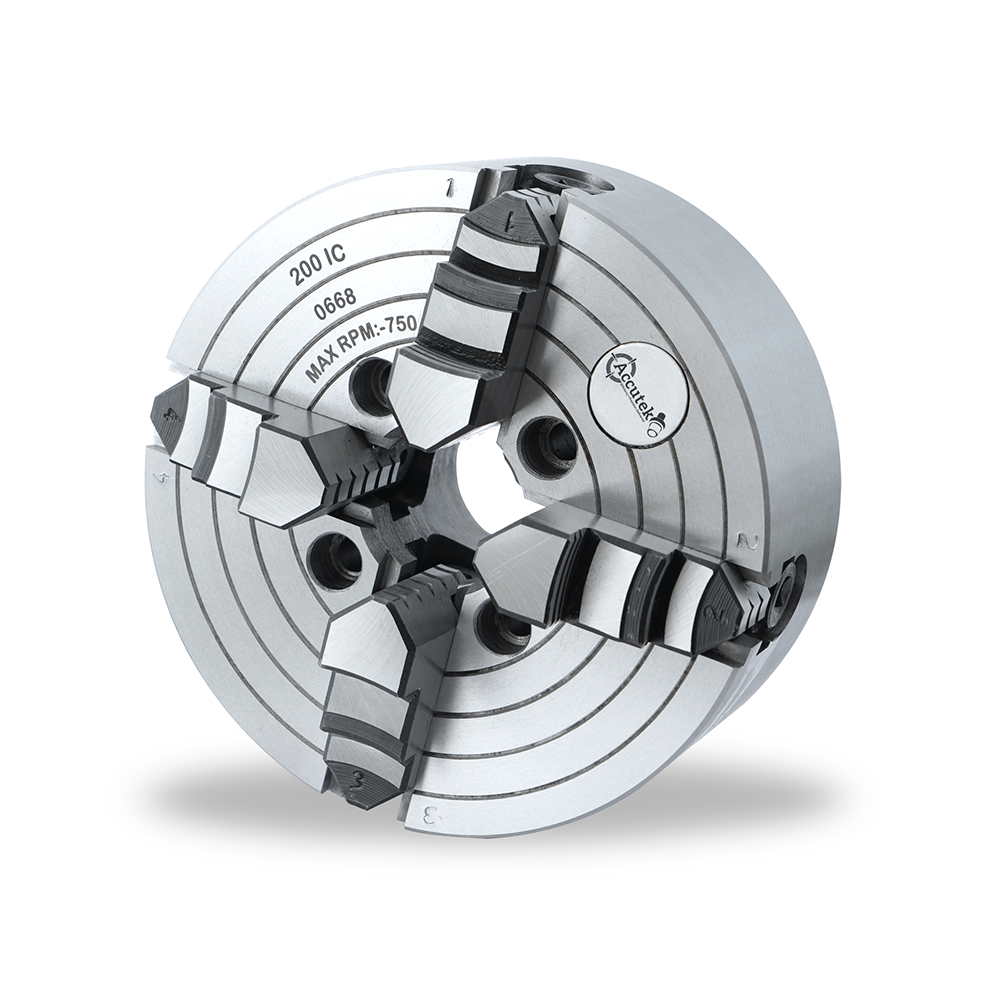

4 Jaws Independent Chucks – Type IC

FEATURES
BODY:
High-strength cast iron alloyed with manganese and chrome (SG iron optional)
JAWS:
Case hardened and precision ground at gripping faces and jaw ways.
OPERATING SCREW:

Case-hardened alloy steel for strength and wear resistance.
Square thread for HIGH GRIPPING FORCE

Cat. no.: N/A Category: Manual Lathe Chucks

Available Options

Cat. no.	Nominal Size d1	D2	d3	d4	d5	t	_h	k	_T	L	H	Max. Rec. rev/min	Clamping Capacity	Wt. in Kg.
160IC	6.30	4.921	5.511	M-10x4	1.771	0.236	2.755	0.3149	0.944	2.165	0.866	750	0.236 -5.905	10
BMP160IC-A2-4
200IC	7.992	3.740	3.251	M-10x4	1.968	0.236	3.267	0.3937	1.1417	2.952	1.220	750	0.472 -7.874	17
250IC	10	4.921	4.125	M-10x4	2.362	0.315	3.267	0.3937	1.1417	3.346	1.338	600	0.708 - 10	20
305IC	12.204	6.299	5.251	M-12x4	2.952	0.393	3.700	0.4724	1.3385	3.937	1.732	600	0.708 - 12.204	34
350IC	13.897	6.299	5.251	M-12x4	3.149	0.393	3.700	0.4724	1.3385	4.330	1.732	600	0.708 - 13.897	40
400IC	15.748	7.874	6.748	M-16x4	3.937	0.472	3.937	0.2424	1.5748	4.724	2.559	600	1.0 - 15.748	60
450IC	17.716	7.874	6.748	M-16x4	3.937	0.472	3.937	0.551	1.5748	4.724	2.559	600	1.0 - 17.716	75
500IC	20.472	10.236	9.251	M-18x4	5.0	0.708	4.330	0.551	1.850	5.905	3.385	450	2.165 - 20.472	107
600IC	24.803	10.236	9.251	M-18x4	7.0	0.708	4.330	0.551	1.850	5.905	3.385	450	2.165 - 24.803	140
800IC	31.496	15.157	13.0	M-22x8	10.623	0.472	6.496	0.866	2.756	8.188	3.937	400	3.937 - 31.50	400
800IC*	31.496	25.787	23.740	M-18x8	21.062	0.472	6.496	0.866	2.756	8.188	3.937	400	3.937 - 31.50	350
