Manual Lathe Chucks

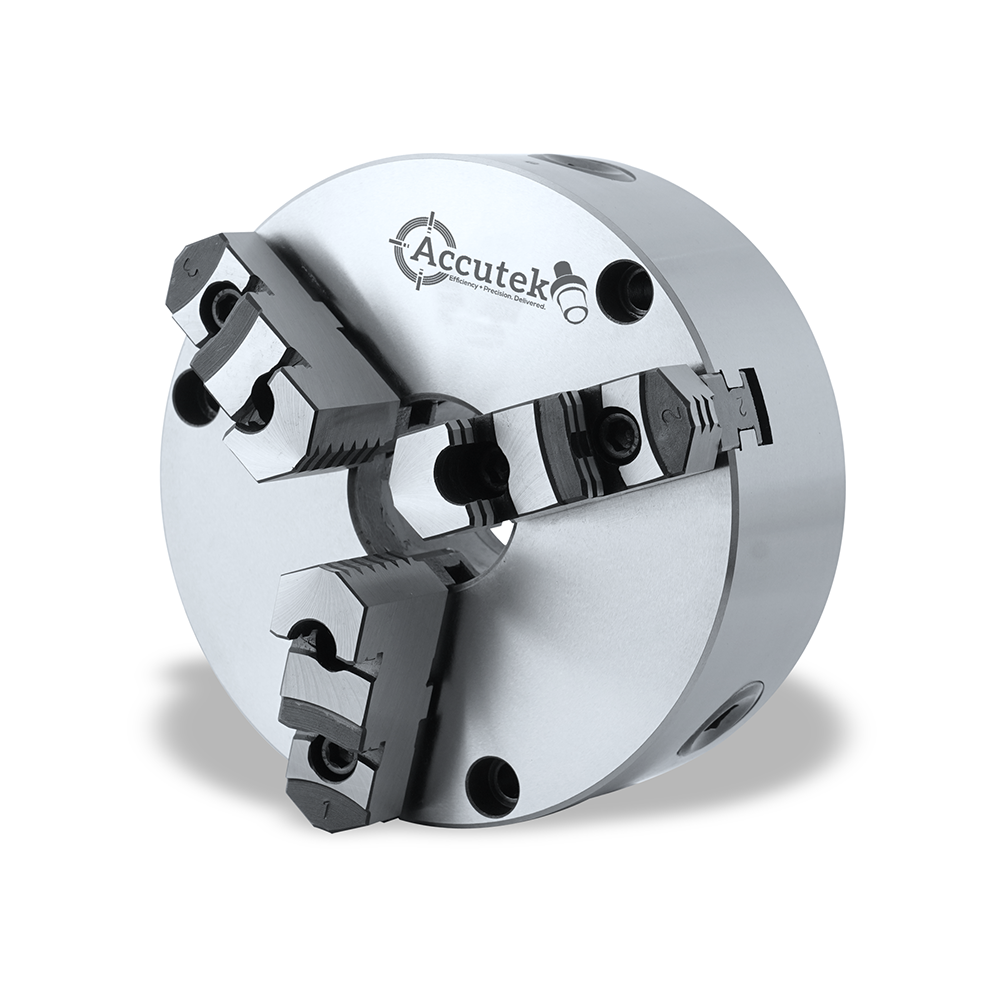

MTJ – Master & Top Jaw – Self Centering Chucks
FEATURES
- Jaw ways hardened and ground
- Jaws: Teeth are precision ground from both sides
- Scroll: Threads are precision ground from both sides o Hardness 40-45 Hrc
- Parts interchangeable with Bison Chucks
- Runout: Less than 0.0016” for chucks greater than 6” Dia.
Available Options
| Cat. no. | Description | Chuck Size d1 (mm/inch) | Jaw Style | Jaw | d2 (mm) | d3 (mm) | d4 (mm) | H1 (mm) | H2 (mm) | K (mm) | Stock | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B125MTJ3 | 5"" 3-jaw Self Centering Master Jaw Scroll Chuck; Semi-Steel Body | 125mm/5" | 2pc Master/Top | 3 Jaw | 95 | 108 | 33 | 56 | 40 | M8 | |||
| B160MTJ3 | 6"" 3-jaw Self Centering Master Jaw Scroll Chuck; Semi-Steel Body | 160mm/6" | 2pc Master/Top | 3 Jaw | 125 | 140 | 42 | 65 | 40 | M10 | |||
| B200MTJ3 | 8"" 3-jaw Self Centering Master Jaw Scroll Chuck; Semi-Steel Body | 200mm/8" | 2pc Master/Top | 3 Jaw | 160 | 176 | 55 | 75 | 44 | M10 | |||
| B250MTJ3 | 10"" 3-jaw Self Centering Master Jaw Scroll Chuck; Semi-Steel Body | 250mm/10" | 2pc Master/Top | 3 Jaw | 200 | 224 | 76 | 85 | 54 | M12 | |||
| B315MTJ3 | 12"" 3-jaw Self Centering Master Jaw Scroll Chuck; Semi-Steel Body | 315mm/12" | 2pc Master/Top | 3 Jaw | 260 | 286 | 103 | 94 | 57 | M12 | |||
| B400MTJ3 | 15-3-jaw-self-centering-master-jaw-scroll-chuck-semi-steel-body | 400mm/15" | 2pc Master/Top | 3 Jaw | 330 | 362 | 136 | 105 | 67 | M16 | |||
| B500MTJ3 | 20"" 3-jaw Self Centering Master Jaw Scroll Chuck; Semi-Steel Body | 500mm/20" | 2pc Master/Top | 6 Jaw | 420 | 458 | 200 | 120 | 77 | M20 | |||
| B630MTJ3 | 25"" 3-jaw Self Centering Master Jaw Scroll Chuck; Semi-Steel Body | 630mm/25" | 2pc Master/Top | 6 Jaw | 545 | 586 | 275 | 135 | 85 | M20 | |||
| B125MTJ6 | 5"" 6-jaw Self Centering Master Jaw Scroll Chuck; Semi-Steel Body | 125mm/5" | 2pc Master/Top | 6 Jaw | 95 | 108 | 33 | 56 | 40 | M8 | |||
| B160MTJ6 | 6"" 6-jaw Self Centering Master Jaw Scroll Chuck; Semi-Steel Body | 160mm/6" | 2pc Master/Top | 6 Jaw | 125 | 140 | 42 | 65 | 40 | M10 | |||
| B200MTJ6 | 8"" 6-jaw Self Centering Master Jaw Scroll Chuck; Semi-Steel Body | 200mm/8" | 2pc Master/Top | 6 Jaw | 160 | 176 | 55 | 75 | 44 | M10 | |||
| B250MTJ6 | 10" 6-jaw Self Centering Master Jaw Scroll Chuck; Semi-Steel Body | 250mm/10" | 2pc Master/Top | 6 Jaw | 200 | 224 | 76 | 85 | 54 | M12 | |||
| B315MTJ6 | 12" 6-jaw Self Centering Master Jaw Scroll Chuck; Semi-Steel Body | 315mm/12" | 2pc Master/Top | 6 Jaw | 260 | 286 | 103 | 94 | 57 | M12 | |||
| B400MTJ6 | 15" 6-jaw Self Centering Master Jaw Scroll Chuck; Semi-Steel Body | 400mm/15" | 2pc Master/Top | 6 Jaw | 330 | 362 | 136 | 105 | 67 | M16 | |||
| B500MTJ6 | 20" 6-jaw Self Centering Master Jaw Scroll Chuck; Semi-Steel Body | 500mm/20" | 2pc Master/Top | 6 Jaw | 420 | 458 | 200 | 120 | 77 | M20 | |||
| B630MTJ6 | 25"" 6-jaw Self Centering Master Jaw Scroll Chuck; Semi-Steel Body | 630mm/25" | 2pc Master/Top | 6 Jaw | 545 | 586 | 275 | 135 | 85 | M20 |
